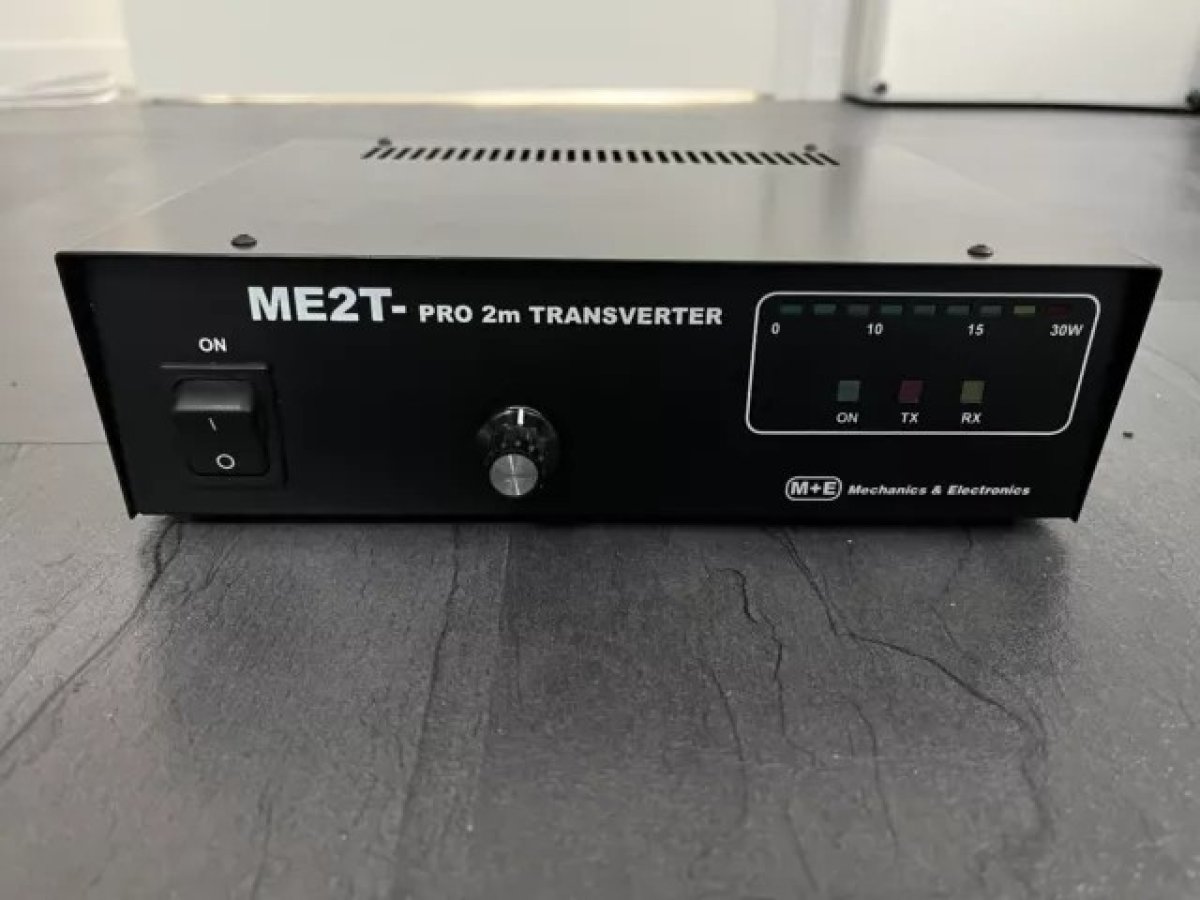

Säljes: ME2T-PRO2 2m High performance transverter

Fint skick, ny kostar 850€.

Frequency Coverage: 144.0-146.0MHz band.
IF in/out Frequency : 14.0-16.0MHz
LO frq stability: Low phase noise TCXO, AXTAL <0.5ppm. (0-+50C)
I/O Impedance : 50 Ohm unbalanced - ant coax jack "N" type.
Input Voltage : 13.8VDC, +-5%, polarity mismatch, 10A -40dB EMI filter.
Power Consumption : 0.58A RX, 5.8A TX @30W output, 10.0A @60W on ME2HT-PRO2
Size & Weight : WxDxH: 240x210x70mm, 2.3kg.
RECEIVING SECTION

RX front-end : <0.8dB NF,overall NF typ 1.0dB,OIP3 typ 35dBm ,IIP3 typ.+10dBm!
PGA-103+ front end
RX RF mixer : HJK-251H+ (IP3 >32dBm!)
RX overall gain : Typ 25dB variable,
IF rejection : >85dB
TRANSMITTING SECTION


Power Output: 30W
IF power input: -20 to +37dBm (switchable built in att.) Single or 2x IF cable operation.
SWR input : 1:1.1
Emission modes : CW, SSB, FM, Digital
Harmonic Output Suppression: >70dB below rated output.
FEATURES

RA30H1317M Mitsubishi RF Power Module

LED bargraph Power meter

Variable output PWR (front page,5-30W)( 5-60W on ME2HT-PRO2 version)

SND jack for ext PAs (GND out when TX, open collector +50V/0.5A max)

ALC circuit

IF RF VOX

Built in heatsink temp. sensor

IF input & output BNC connectors

Common or separate 2m TX/RX connectors.

20A type DC connectors

Optional IF RX, TX and PTT cables

Built in jumperable IF amplifier to low out level radios(IC7600,7800,FTDX5000 )


Operating environments:
- temperature range: 0...+50 degs.Celsius;
- humidity: up to 95% @ +35 degs.Celsius.

Pris: 4000
